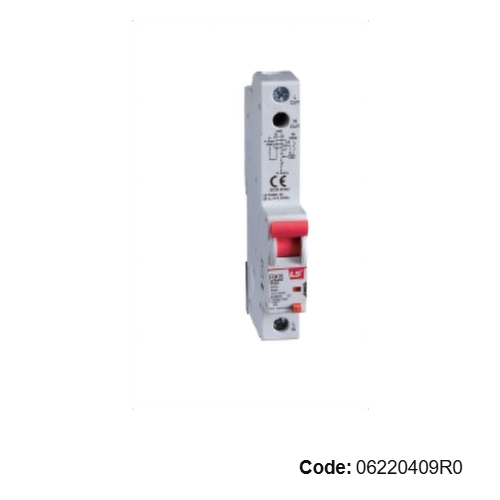

06220409R0

RKS type

C curve:
06220409R0 RKS 1P+N C10A 30mA NEW ROGY
06220411R0 RKS 1P+N C16A 30mA NEW ROGY
06220413R0 RKS 1P+N C20A 30mA NEW ROGY
06220415R0 RKS 1P+N C25A 30mA NEW ROGY
06220417R0 RKS 1P+N C32A 30mA NEW ROGY

Standard: Confirming to IEC 61009
Approval: SEMKO CB, CE, SABS
Protection: Ground fault and overcurrent
Rated current [In]: 6, 10, 16, 20, 25, 32A
Rated voltage [Ue]: 230VAC
Breaking capacity: 10kA
Characteristic: B, C curve
Rated residual operating current: 30, 100mA
Number of poles: 1P+N
Rated insulation voltage [Ui]: 500V
Rated impulse withstand voltage [Uimp]: 4kV
Type of operation: AC
Type of trip:
Ground fault: Electronic
Overcurrent: Thermal-magnetic
Terminal: Lug type (Cables up to 10mm2)
Mount: 35mm DIN rail
Width: 18mm
Electrical endurance: 4,000 operations
