403543

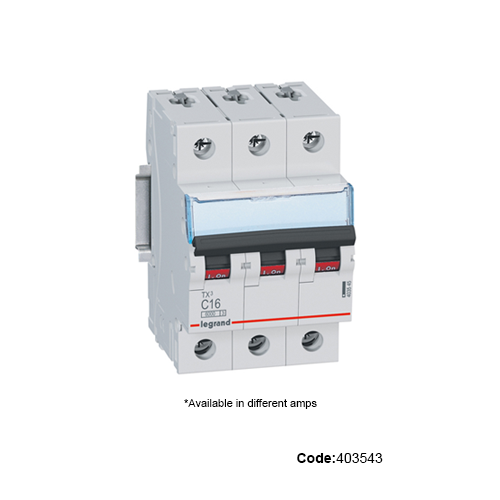

MCB TX3 6KA 3P 10A 3M C Curve 400V

403543 – MCB TX3 6KA 3P 10A 3M C Curve 400V
403545 – MCB TX3 6KA 3P 16A 3M C Curve 400V
403546 – MCB TX3 6KA 3P 20A 3M C Curve 400V
403547 – MCB TX3 6KA 3P 25A 3M C Curve 400V
403548 – MCB TX3 6KA 3P 32A 3M C Curve 400V
403549 – MCB TX3 6KA 3P 40A 3M C Curve 400V
403550 – MCB TX3 6KA 3P 50A 3M C Curve 400V
403551 – MCB TX3 6KA 3P 63A 3M C Curve 400V

MCBs TX? 6000 – thermal magnetic MCBs from 2 A to 63 A – B & C curve
Compliant with AS/NZS 60 898-1 – AS/NZS 60947-2
Compatible with prong-type and fork type supply busbars
Equipped with special DIN rail clamp allowing independent MCB removal with supply busbar in place.
Breaking capacity:
6000 – IEC 60898-1 – 230/400 V~
6 kA – IEC 60947-2 – 230/400 V~
Can be equipped with DX? signalling and remote tripping auxiliaries and motorised controls
Do not accept add-on modules
Easy and fast installation and maintenance by two position DIN clip

Legrand miniature cricuit breaker (MCB). Thermal-magnetic circuit breaker for control, disconnection and protection of electrical circuits against overcurrents. Power supply comes either from the top or the bottom. The location of the terminals allows supplying by pin busbar both sides and fork busbar lower side. Equipped with a din rail clamp which facilitates the removal of the circuit-breaker from the din rail in case of maintenance or replacement without the need to disconnect the entire supply line.
