83361611056

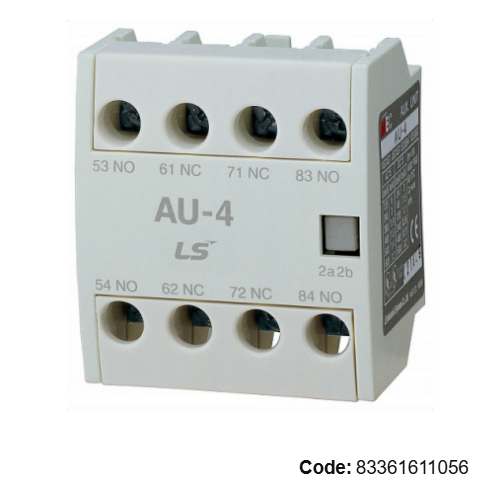

AU-4 3NO/1NC 4 Pole for Front Mount
83361611056

Primary brand: LSIS
Product series / family name: Susol
Functions: Contactor auxiliary contact
Rated insulation voltage (Ui): (IEC947-1; UL; CSA) 600 V
Poles: 4 Poles
Short circuit withstand current (Icw): (gLgG fuse) IEC947-5-1) 16A / 0.016 kA
Normally Open (NO) auxiliary contacts: 3 NO contacts
Normally Closed (NC) auxiliary contacts: 1 NC contacts
Rated current:
(A600; 120V; AC-15) 6 A
(A600; 240V; AC-15) 3 A
(A600; 380V; AC-15) 1.9 A
(A600; 480V; AC-15) 1.5 A
(A600; 600V; AC-15) 1.2 A
(P600; 125V; DC-13) 1.1 A
(P600; 250V; DC-13) 0.55 A
(DC-13; P600; 440V) 0.31 A
(DC-13; P600; 500V) 0.27 A
(DC-13; P600; 600V) 0.2 A
Technical compatibility with: MC-9; MC-12; MC-18; MC-25; MC-32; MC-35; MC-40; MC-50; MC-63; MC-65; MC-75; MC-85; MC-95
Manufacturer product status: Commercialized
Operating rate: 1 800 Cycles/hour
Type of terminals: Screw clamp
