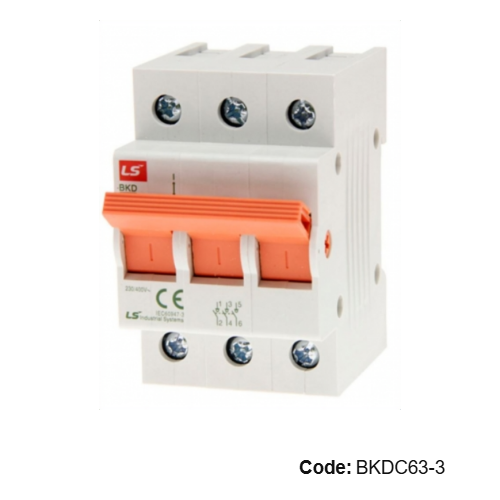

BKDC63-3

3P 63A 6kA Isolator
BKDC63-3

3-pole, 63A load break switch for disconnecting voltage from an electrical installation or machine. 52.5mm wide modular design for DIN rail mounting.

Characteristic:
Manufacturer: LS (LG)
Reference: BKD 3P 63A
Number of poles: 3
Rated voltage: 240/415Vac 50/60Hz
Rated current: 63A
Rated insulation voltage (Ui): 600V
Rated impulse voltage (Uimp): 6kV
Electrical life: 1500 operations
Mechanical life: 10,000 operations
Mounting: 35mm DIN rail
Width: 17.5mm per pole (52.5mm)
Standard: IEC60947-3
